Aahaan Overseas

Aluminium
Alloy Ignots

Our Aluminium Alloy Ingots are for different industries i.e. Automotive industry , Household castings Construction industry etc.
Our ingots are with High tensile strength and excellent resistance.

Aluminum Alloys Ingots Chemical Composition

Aluminum Alloys Ingots Chemical Composition
Alloy	SI	Fe	Cu	Mn	Mg	NI	Zn	Sn	TI	Pb	Cr
AC1A	1.20max	0.50max	4.0-5.0	0.30max	0.15max	0.05max	0.30max	0.05max	0.25max	0.05max	0.05max
AC1B	0.20max	0.35max	4.2-5.0	0.10max	0.15-0.35	0.05max	0.10max	0.05max	0.05-0.30	0.05max	0.05max
AC2A	4.0-6.0	0.80max	3.0-4.5	0.55max	0.25max	0.30max	0.55max	0.05max	0.20max	0.15max	0.15max
AC2B	5.0-7.0	1.0max	2.0-4.0	0.50max	0.50max	0.35max	1.00max	0.10max	0.20max	0.20max	0.20max
AC3A	10.0-13.0	0.80max	0.20max	0.35max	0.15max	0.10max	0.30max	0.10max	0.20max	0.10max	0.15max
AC4A	8.0-10.0	0.40max	0.25max	0.3-0.6	0.3-0.6	0.10max	0.25max	0.05max	0.20max	0.10max	0.15max
AC4B	7.0-10.0	1.0max	2.0-4.0	0.50max	0.50max	0.35max	1.00max	0.10max	0.20max	0.20max	0.20max
AC4C	6.5-7.5	0.55max	0.25max	0.35max	0.25-0.45	0.10max	0.35max	0.05max	0.20max	0.10max	0.10max
AC4CH	6.5-7.5	0.20max	0.20max	0.10max	0.30-0.45	0.5max	0.10max	0.05max	0.20max	0.05max	0.05max
AC4D	4.5-55	0.60max	1.0-1.5	0.50max	0.45-0.60	0.20max	0.30max	0.05max	0.20max	0.10max	0.15max
AC5A	0.60max	0.80max	3.5-4.5	0.35max	1.30-1.80	1.7-23.3	0.15max	0.05max	0.20max	0.05max	0.15max
AC7A	0.20max	0.30max	0.10max	0.60max	3.5-5.55	0.5max	0.15max	0.05max	0.20max	0.05max	0.15max
AC8A	11.0-13.0	0.80max	0.8-1.3	0.15max	0.80-1.30	0.8-1.5	0.15max	0.05max	0.20max	0.05max	0.10max
AC8B	8.5-10.5	1.0max	2.0-4.0	0.50max	0.60-1.50	1.0-1.0	0.50max	0.10max	0.20max	0.10max	0.10max
AC8C	8.5-10.5	1.0max	2.0-4.0	0.50max	0.60-1.50	0.50max	0.50max	0.10max	0.20max	0.10max	0.10max
AC9A	22.0-24.0	0.80max	0.5-1.6	0.50max	0.60-1.50	0.5-1.5	0.20max	0.10max	0.20max	0.10max	0.10max
AC9B	18.0-20.0	0.80max	05-1.6	0.50max	0.60-1.50	0.5-1.5	0.20max	0.10max	0.20max	0.10max	0.10max
ADC1	11.0-13.0	1.30max	1.0max	0.3max	0.3max	0.5max	0.5max	0.1max
ADC3	9.0-10.0	1.30max	0.6max	0.3max	0.4-0.6	0.5max	0.5max	0.1max
ADC5	0.3max	1.80max	0.2max	0.3max	4.1-8.5	0.1max	0.1max	0.1max
ADC-06	1.0max	0.8max	0.1max	0.4-0.6	2.6-4.0	0.1max	0.4max	0.1max
ADC10	7.5-9.5	0.9max	2.0-4.0	0.5max	0.3max	0.5max	1.0max	0.3max
ADC10Z	7.5-9.5	1.3max	2.0-4.0	0.5max	0.3max	0.5max	3.0max	0.3max
ADC12	9.6-12.0	0.9max	1.5-3.5	0.5max	0.3max	0.5max	1.0max	0.3max
ADC12Z	9.6-12.0	1.3max	1.5-3.5	0.5max	0.3max	0.5max	3.0max	0.3max
ADC14	16.0-18	0.9max	4.0-5.0	0.5max	0.50-0.65	0.3max	1.5max	0.3max
ALS1132	11-12.50	0.5-0.8max	1.9-2.5max	0.3max	0.3max	0.3max	0.9max	0.1max	0.2max	0.15max
LM2	9.0-11.5	1.0max	0.7-2.5	0.50max	0.3max	0.5max	2.0max	0.20max	0.2max	0.30max
LM4	4.0-6.0	0.8max	2.0-4.0	0.2-0.6	0.15max	0.3max	0.5max	0.10max	0.2max	0.10max
LM5	0.3max	0.6max	0.1max	0.3-0.7	3.0-6.0	0.1max	0.1max	0.05max	0.2max	0.05max
LM6	10.0-13.0	0.6max	0.1max	0.5max	0.1max	0.1max	0.1max	0.05max	0.05max	0.10max
LM8	10.0-13.0	0.6max	0.1max	0.5max	0.1max	0.1max	0.1max	0.05max	0.2max	0.10max
LM9	10.-13.0	0.6max	0.1max	0.3-0.7	0.2-0.6	0.1max	0.1max	0.05max	0.2max	0.10max
LM10	0.25max	0.35max	0.1max	0.1max	9.5-11	0.1max	0.1max	0.05max	0.2max	0.05max
LM12	2.5max	1.0max	9.0-11	0.6max	0.2-0.4	0.5max	0.8max	0.10max	0.2max	0.10max
LM13	10.-12.0	1.0max	0.7-1.5	0.5max	0.8-105	1.5m	0.5max	0.10max	0.2max	0.10max
LM16	4.5-5.5	0.6max	1.0-1.5	0.5max	0.4-0.6	0.25max	0.1max	0.05max	0.2max	0.10max
LM18	4.5-6.0	0.6max	0.1max	0.5max	0.1max	0.1max	0.1max	0.05max	0.2max	0.10max
LM20	10.0-13.0	1.0max	0.4max	0.5max	0.2max	0.1max	0.2max	0.10max	0.2max	0.10max
LM21	5.0-7.0	1.0max	3.0-5.0	0.2-0.6	0.1-0.3	0.3max	2.0max	0.10max	0.2max	0.20max
LM22	4.0-6.0	0.6max	2.8-3.8	0.2-0.6	0.05max	0.15max	0.15max	0.05max	0.2max	0.10max
LM24	7.5-9.5	1.3max	3.0-4.0	0.5max	0.3max	0.5max	3.0max	0.20max	0.2max	0.30max
LM25	6.5-7.5	0.5m	0.1max	0.3max	0.2-0.45	0.1max	0.1max	0.05max	0.2max	0.10max
LM26	8.5-10.5	1.2m	2.0-4.0	0.5max	0.5-1.5	1.0max	1.0max	0.10max	0.2max	0.20max
LM27	6.0-8.0	0.8max	1.5-2.5	0.2-0.6	0.3max	0.3max	1.0max	0.10max	0.2max	0.20max
LM28	17-20	0.7max	1.3-1.8	0.6max	0.8-1.5	0.8-1.5	0.2max	0.10max	0.2max	0.10max
LM29	22-25	0.7max	0.13-1.3	0.6max	0.8-1.3	0.8-1.3	0.2max	0.10max	0.2max	0.10max
LM30	16-18	1.1m	4.0-5.0	0.3max	0.4-0.7	0.1max	0.2max	0.10max	0.2max	0.10max
We also manf. Below Alloys
DIN226	356.1	360.1	380.1	383.1	413.1	413.2	ALS-10MG	ALSI Cu3%	ALSI-8Cu	A-413	A-3840
A-380	A-360	EN601	LM-14	AC38A

Aluminium
Coils & Sheets

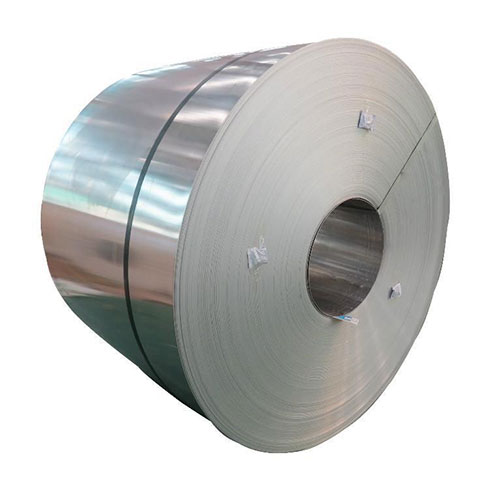

Aluminium Coils

Alloy/Temper/Id/Sheet Size	208 mm to 508 mm
Thickness	0.25mm To 0.71mm
Width	1220 mm, 915 mm, 762 mm, 610 mm, 457 mm, 1000 mm

Aluminium Sheets

Alloy/Temper/Id/Sheet Size	1220 mm x 2440 mm,2440 mm x 913 mm & 2440 mm x 1000 mm
Thickness	1mm To 8mm
Width	upto 1425 mm

Chequered Sheets

Alloy/Temper/Id/Sheet Size	1220 mm x 2440 mm, 813 mm x 3660 mm, 913 mm x 3660 mm
Thickness	1mm To 8mm
Width	1220 mm x 2440 mm, 813 mm x 3660 mm, 913 mm x 3660 mm

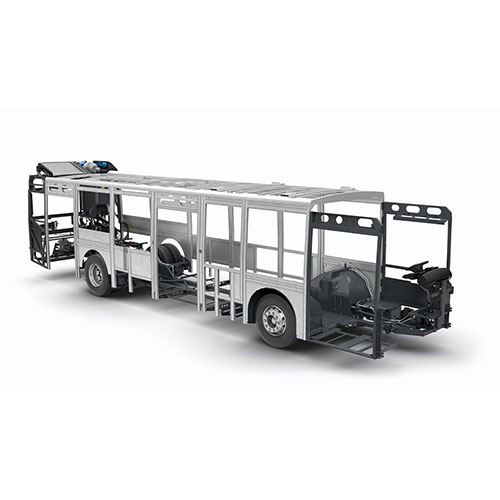

Aluminium Bus Body

Alloy/Temper/Id/Sheet Size	1220 mm x 2440 mm, 2440 mm x 913 mm & 2440 mm x 1000 mm
Thickness	1mm To 8mm
Width	upto 1425 mm

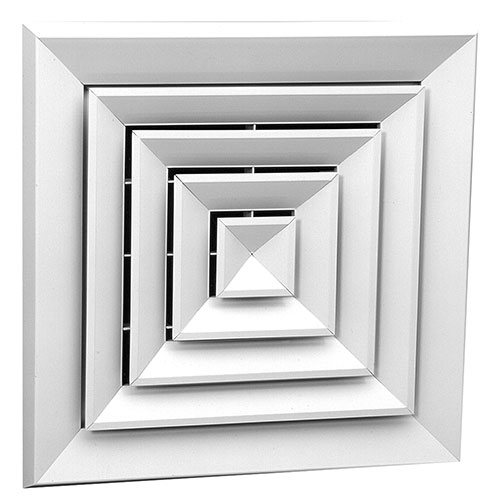

Alumminium Coil for AC Diffuser

Alloy/Temper/Id/Sheet Size	AA 8011 / "O" Temper
Thickness	0.8 to 1.2 mm
Width	upto 1200mm

Aluminium Patterned Sheet & Plates

Alloy/Temper/Id/Sheet Size	1220 mm x 2440 mm, 813 mm x 3660 mm, 913 mm x 3660 mm
Thickness	1mm To 8mm
Width	1220 mm x 2440 mm, 813 mm x 3660 mm, 913 mm x 3660 mm

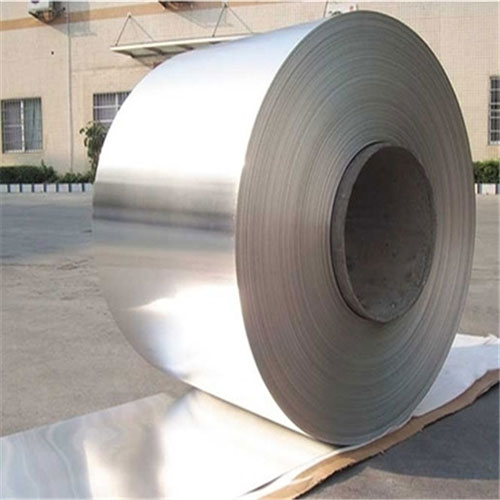

Spiral Finstock

Alloy/Temper/Id/Sheet Size	203mm, 250mm
Thickness	0.30mm to 0.45mm
Width	10mm To 25mm

Aluminium Coil for Roll Band

Alloy/Temper/Id/Sheet Size	AA 1050 / "O" Temper
Thickness	-
Width	upto 1200mm

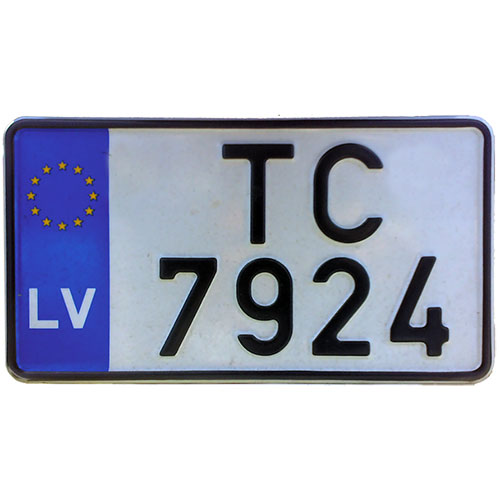

Aluminium coils for HSNL Application

Alloy/Temper/Id/Sheet Size	AA 1050 / H22
Thickness	1mm
Width	50mm To 350mm

Aluminium Coils for Litho Application

Alloy/Temper/Id/Sheet Size	AA : 8011, 1200, 1050; Temper: H14, H16, H18
Thickness	0.20mm To 0.30mm
Width	600 To 1000mm

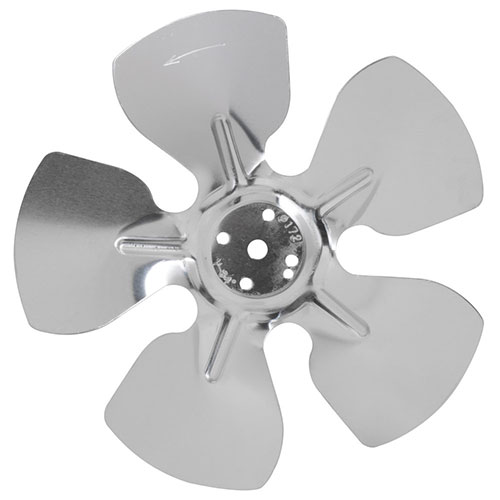

Fan Blade Sheet

Alloy/Temper/Id/Sheet Size	AA : 1100, 1200, 3105, 8011; TEMPER : H16, H18
Thickness	0.70 – 1.50mm
Width	1000mm to 1380mm

Foil Stock

Alloy/Temper/Id/Sheet Size	AA 1000, 1100, 1235 and 8011
Thickness	-
Width	upto 1220mm

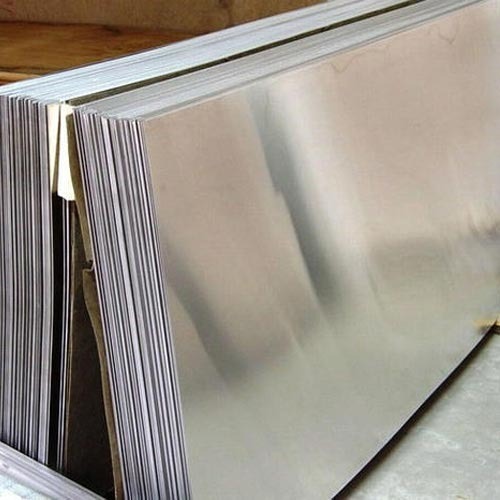

Aluminum Caul Board Sheets (Plywood Industry)

Alloy/Temper/Id/Sheet Size	-
Thickness	2.50/3.00 mm
Width	1320 mm x 2540 mm

Lamp Cap Stock

Alloy/Temper/Id/Sheet Size	AA 8011 / H14, H16
Thickness	0.25 - 0.40
Width	100mm To 1220mm

Closure Stock For Pharmaceutical & Liquor Sector

Alloy/Temper/Id/Sheet Size	AA 8011 / H14
Thickness	0.125 To 0.250 mm
Width	upto 1425 mm

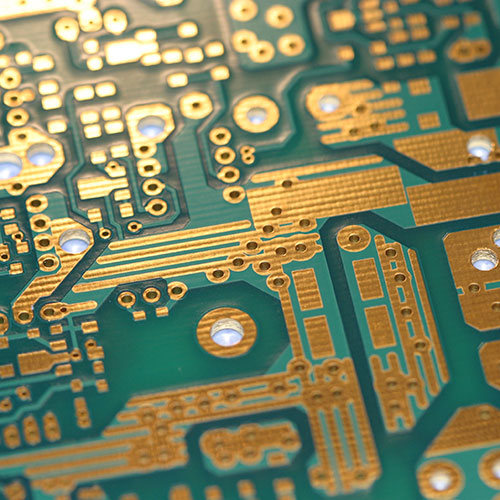

Printed Circuit Board Sheets

Alloy/Temper/Id/Sheet Size	AA 8011 /3105/1050/ H18
Thickness	0.15 To 0.28 mm
Width	1250mm

Vial Seal

Alloy/Temper/Id/Sheet Size	AA 8011 / H14
Thickness	0.17-0.21mm
Width	20mm To 500mm

Eyelet Stock

Alloy/Temper/Id/Sheet Size	AA 8011 / "O" Temper
Thickness	0.15 To 0.20
Width	As required

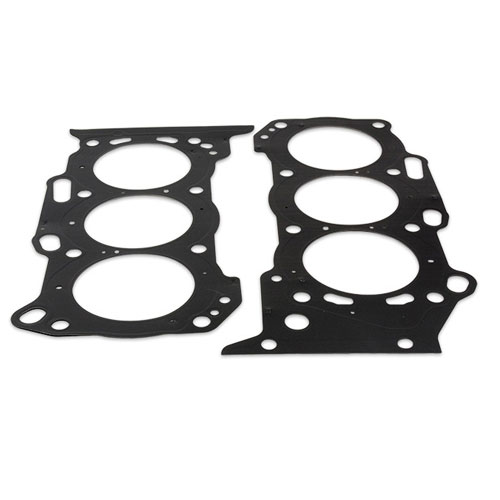

Gaskets Stock

Alloy/Temper/Id/Sheet Size	AA3003
Thickness	0.15 To 0.25mm
Width	Up to 1000mm

Aluminum Coil for Heat Shield

Alloy/Temper/Id/Sheet Size	AA 1050; Temper "O"
Thickness	0.25 To 0.71
Width	upto 1220mm

Aluminium
Foils

Household Aluminium foil

Alloy	AA8011/1235
Thickness	9 mic To 20 Mic
Temper	Soft

Pharma Strip Foil

Alloy	AA8011/1200
Thickness	25/30/40 mic (Poly Laminated)
Temper	Soft

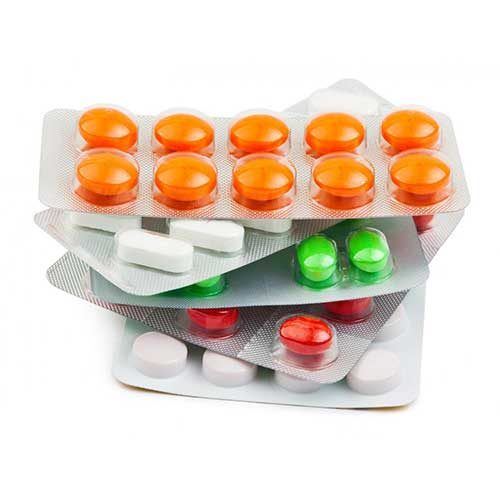

Aluminium Blister Foil

Alloy	AA8011/1200
Thickness	20/25mic(4 to 6) & (6 to 8) VMCH coated
Temper	Hard

Printed Aluminium Blister & Pharma Foil

Alloy	AA8011/1200
Thickness	20/25/30/40 mic (Up to 8 Colours Printing )
Temper	Hard/Soft

Bare foil for Pharma/Blister Packaging

Alloy	AA8011/1235
Thickness	20/25/30/40 mic
Temper	Hard/Soft

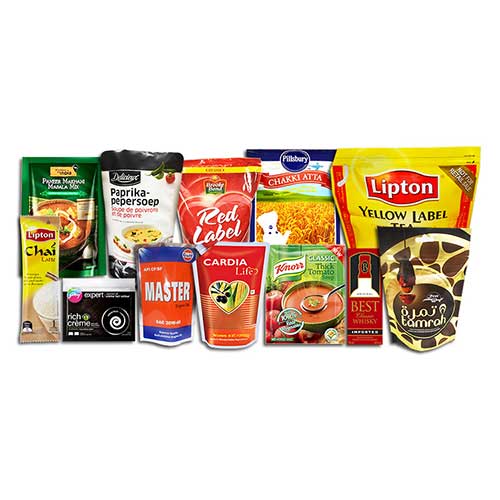

Light gauge foil up to 7 mic thickness

Alloy	AA8011/1235
Thickness	7 Mic To12 Micons
Temper	Hard/Soft

Tagger Foil & Lidding foil

Alloy	AA8011/3003
Thickness	35 Microns To 65 Microns
Temper	Hard/Soft

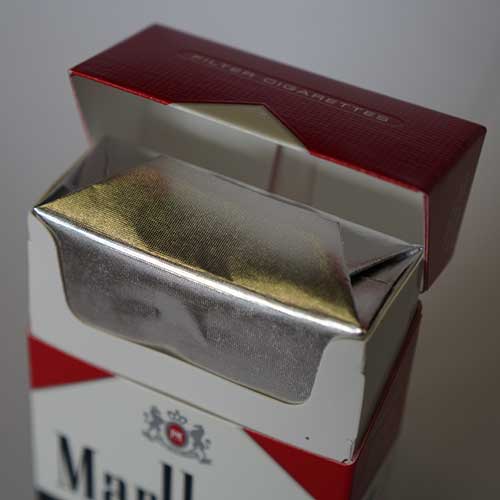

Cigarette Foil (Foil Paper Laminates)

Alloy	AA8011/1200
Thickness	6.5 To 8 microns
Temper	Soft

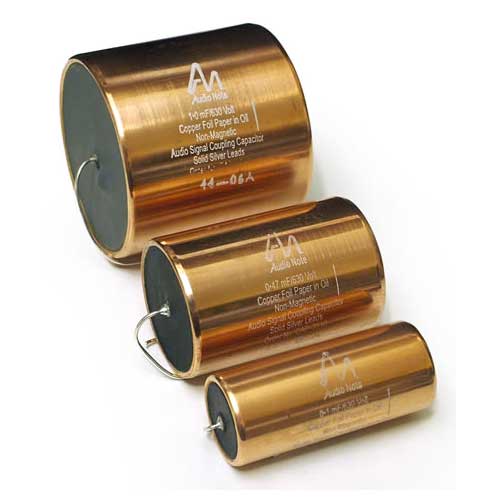

Capacitor Foil

Alloy	AA8011/1235
Thickness	6 Mic To10 Micons
Temper	Soft

Transformers Foil

Alloy	AA1050/1350
Thickness	0.08 To 3.0mm
Temper	"0"

Foil Tape

Alloy	AA1100/1235
Thickness	6 Microns To 20 Microns
Temper	Soft

Cable Wrap

Alloy	1200 & 8011
Thickness	0.17 to 0.20 Microns
Temper	O, H18

Beerneck Foil

Alloy	AA8011
Thickness	0.01mm To 0.7mm
Temper	"0"

Radiator Stock

Alloy	AA3003
Thickness	0.07 To 0.12
Temper	H16/H18

Fin Stock

Alloy	AA1050/8011/1100
Thickness	0.095 To 0.210mm
Temper	H22/H24/Soft

Flexible Packaging Foil

Alloy	AA1235/8011
Thickness	0.007 To 0.012mm
Temper	Soft/Hard

Aluminium Container Foil

Alloy	AA3003/8006
Thickness	35 Microns To 65 Microns
Temper	H24

Aluminium
Deox

Aluminum Ingots

Al	93%, 97%, 98%, 98.5%, 99%

Aluminum Cubes

Al	93%, 97%, 98%, 98.5%, 99%

Aluminum Shots

Al	93%, 97%, 98%

Aluminum Notch Bar

Al	93%-98%
